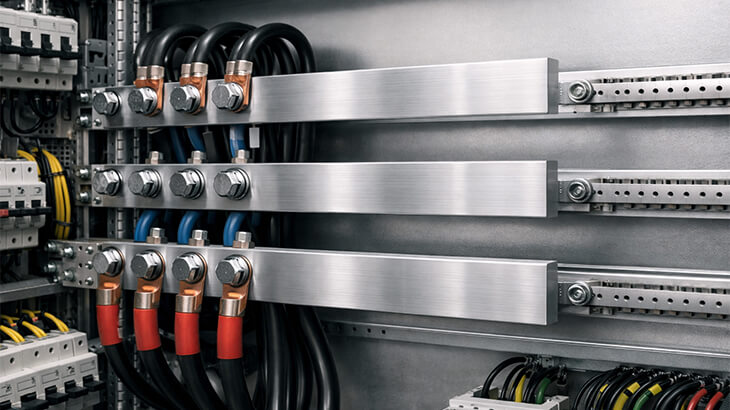

Why Alloy 6063 is the Go-To Material for Aluminum Bus Bars

In the fast-paced world of electrical infrastructure and power distribution, material selection is everything. For decades, copper was the undisputed king of conductors. However, with rising material costs and the constant push for lightweight efficiency, the US market has seen a massive shift toward aluminum.

But not just any aluminum will do. If you are designing a substation, a switchgear cabinet, or a high-voltage distribution system, you have likely encountered a specific number again and again: 6063.

At Aluminium Tubes, we understand that choosing the right alloy is critical for the safety and longevity of your project. While there are many options in the 6000-series family, alloy 6063 stands out as the industry workhorse. In this post, we’ll dive deep into why this specific alloy is the preferred choice for manufacturing aluminum bus bars and how it balances conductivity, strength, and cost.

The Conductivity Equation

The primary job of a bus bar is to move electricity. A common misconception is that you must use the purest aluminum possible for the best conductivity. While pure aluminum (like the 1000 series) conducts electricity very well, it lacks the physical strength required for structural bus bar applications.

Alloy 6063 offers the perfect compromise. It belongs to the Al-Mg-Si (Aluminum-Magnesium-Silicon) family. It typically boasts an electrical conductivity of approximately 55% IACS (International Annealed Copper Standard). While this is lower than copper, it is significantly higher than its stronger cousin, alloy 6061, which usually offers around 40-43% IACS.

Engineers compensate for the conductivity difference between copper and aluminum by designing the 6063 bus bar with a larger cross-sectional area. Because aluminum has a density of roughly 2.69 g/cm³—about one-third that of copper—you can use a larger bar to carry the same current while still achieving a weight reduction of up to 50-70%. This makes 6063 an incredibly efficient choice for weight-sensitive applications.

Superior Extrudability and Custom Shapes

One of the main reasons we at Aluminium Tubes champion alloy 6063 is its manufacturability. 6063 is widely known as an “architectural alloy” because of its incredible extrudability.

Bus bars aren’t always flat strips. Modern electrical designs often require tubular bus bars (hollow tubes) or complex cross-sections to manage the “skin effect” in AC applications and improve cooling. Alloy 6063 can be extruded into complex shapes with very smooth surfaces and tight tolerances that harder alloys simply cannot match.

Whether you need rectangular bars, channels, or tubular profiles to optimize current distribution, 6063 allows for the production of these complex sections without cracking or surface defects.

The Thermal Advantage

Heat is the enemy of electrical systems. When electricity flows through a conductor, resistance generates heat. If a bus bar cannot dissipate that heat effectively, it compromises the system’s safety and efficiency.

Alloy 6063 possesses excellent thermal conductivity, rated at approximately 200–220 W/(m·K). This property allows the bus bar to act as a heat sink, efficiently dissipating thermal energy generated during high-current transmission.

This is where the shape factor comes into play again. Because 6063 is so easily extruded into tubes, we can supply tubular bus bars that offer superior convective cooling compared to flat bars. The combination of the alloy’s natural thermal properties and the geometric freedom it offers makes it ideal for high-voltage substations and transformers.

Mechanical Strength and Workability

A bus bar must be more than just a conductor; it is also a structural component. It needs to withstand electromagnetic forces during short circuits and support its own weight between insulators.

Alloy 6063 is heat-treatable. We typically supply it in T6 or T5 tempers. In the T6 temper, it achieves a yield strength significantly higher than pure aluminum, providing the rigidity needed for switchgear and building electrical systems.

However, strength isn’t helpful if the bar snaps when you try to install it. Installation often requires bending the bus bar to fit into tight enclosures. Alloy 6063 is famous for its excellent cold workability. unlike alloy 6061, which can be prone to cracking during tight bends if not handled carefully, 6063 allows for bending and forming into complex installation configurations without failure. This saves installation crews time and reduces material waste.

Durability in Harsh Environments

For outdoor substations or industrial facilities across the USA, corrosion resistance is non-negotiable.

Alloy 6063 forms a natural, robust oxide layer that protects it from the elements. It is highly resistant to general corrosion and stress corrosion cracking. For applications requiring even more protection or better surface contact conductivity, 6063 is an excellent candidate for surface treatments.

Because of its high surface quality requirements—typically free of burrs and spots—6063 is exceptionally easy to anodize or plate. At Aluminium Tubes, we know that whether you need silver plating for maximum conductivity at contact points or tin plating to improve solderability, 6063 provides the ideal substrate for these finishes.

Why Choose “Aluminium Tubes”?

When selecting materials for power distribution, you need a partner who understands the intricate balance between electrical performance and mechanical reliability.

While other suppliers might push generic stock, we specialize in high-performance solutions. We understand that for an aluminium bar supplier to be truly valuable to your supply chain, they must offer materials that reduce total project costs without cutting corners on performance.

Alloy 6063 represents that value. It offers:

• Cost-Effectiveness: Significantly cheaper than copper.
• Reliability: Proven track record in medium and high-voltage fields.
• Versatility: adaptable to flat, tubular, and custom profiles.

At Aluminium Tubes, we are committed to providing the highest quality 6063 products to the US market. Whether you are retrofitting an old facility or building a new renewable energy grid, our expertise ensures you get the right profile for the job.

Stop compromising on your electrical infrastructure. Choose the alloy that offers the perfect blend of strength, conductivity, and workability. Choose Aluminium Tubes.
